Pillar Pro

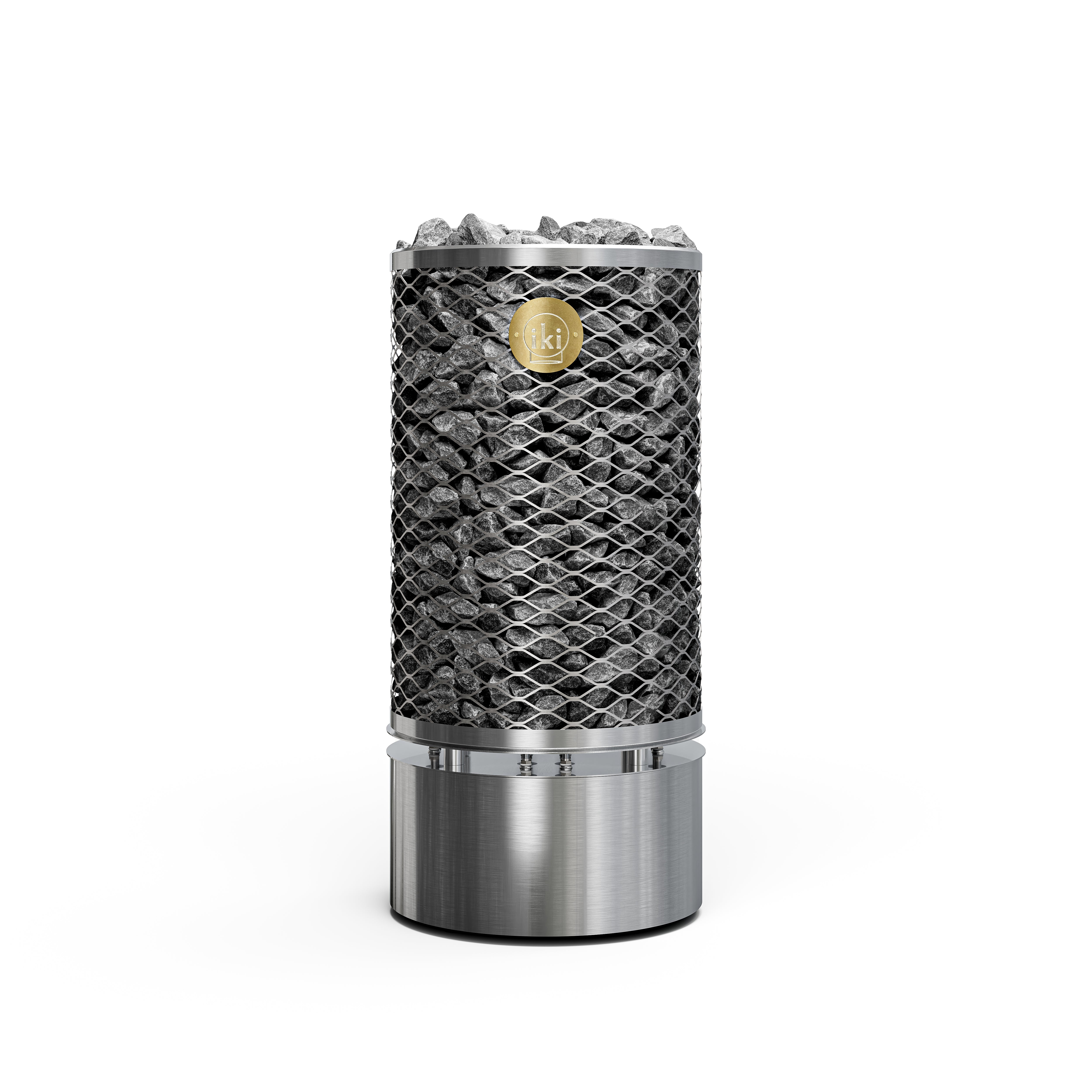

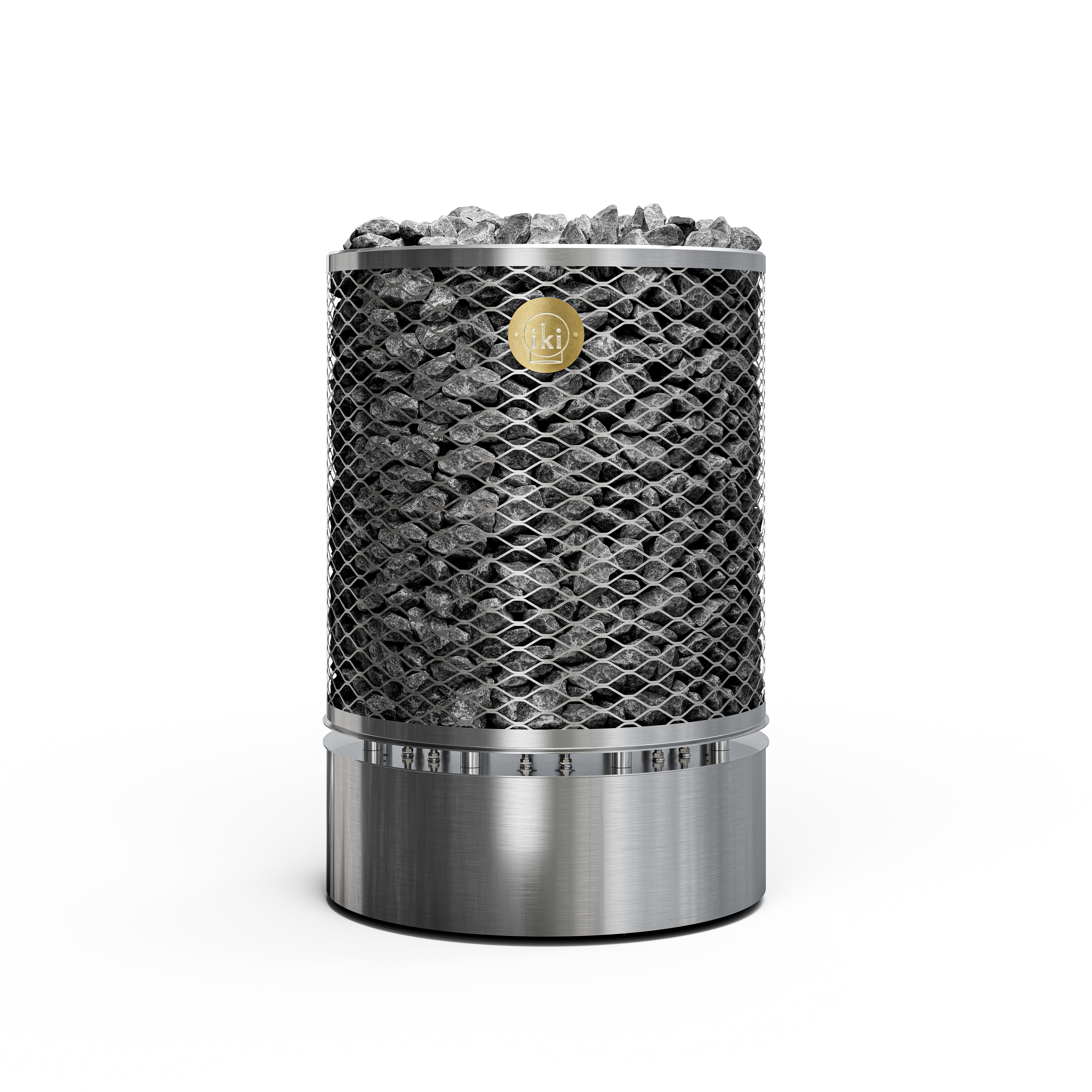

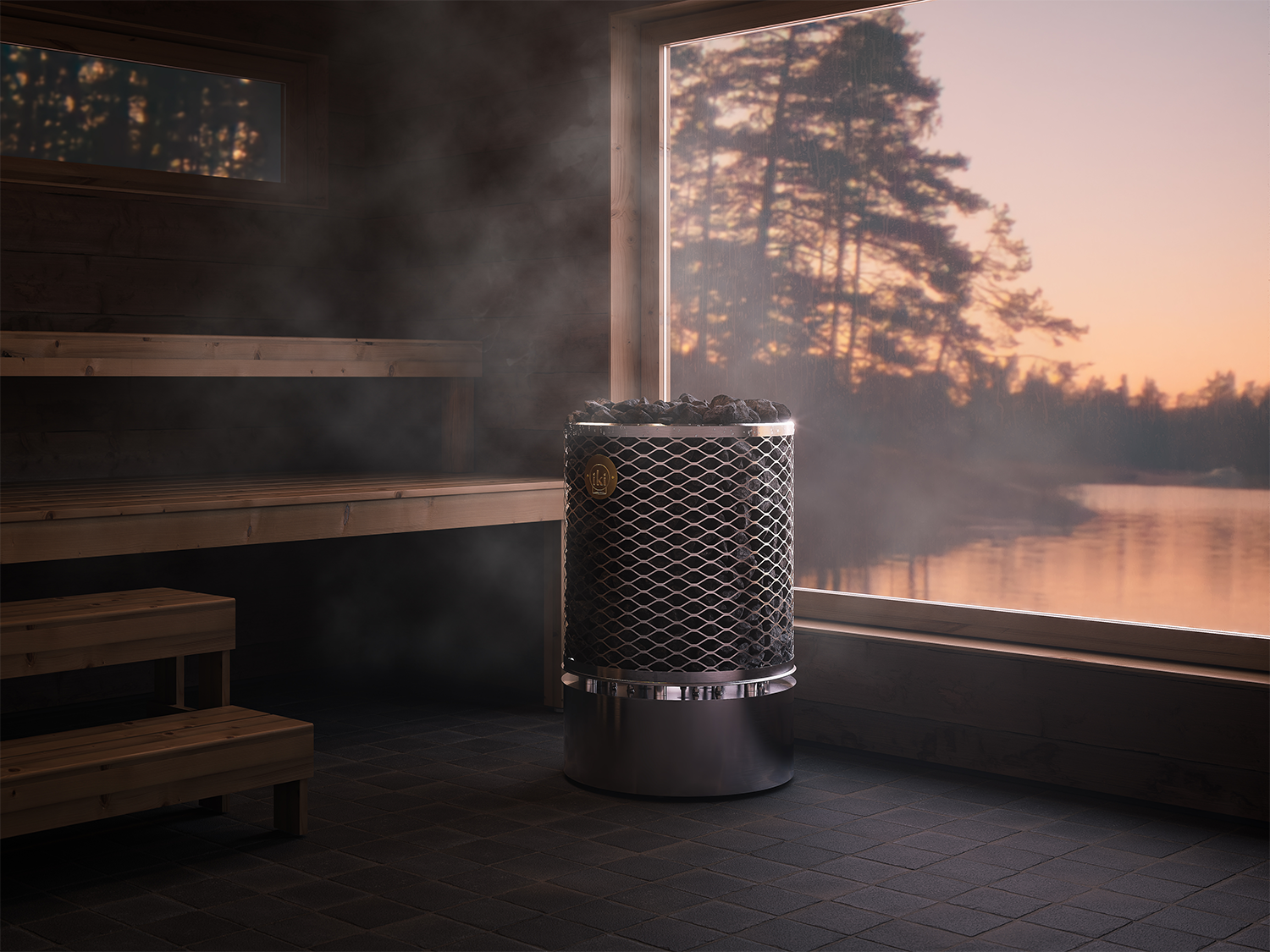

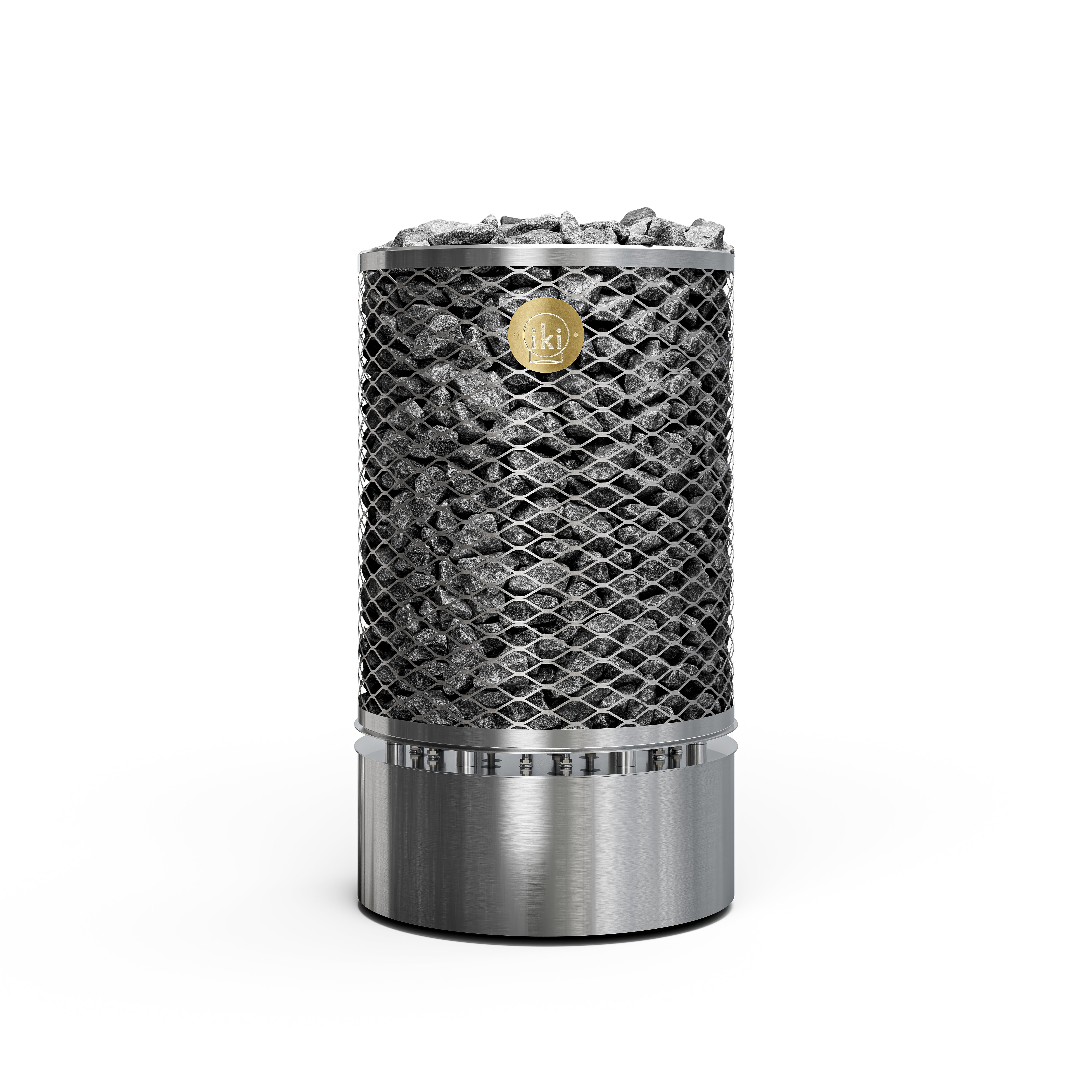

The PILLAR PRO electric heater is designed for professional use in shared and public saunas, such as in apartment buildings, swimming halls, sports halls, spas and other facilities where the heater is in heavy daily use. The heater’s stone capacity range is a staggering 140 - 290 kilograms, which lends the sauna a soft and moist steam.
PILLAR PRO communally and professionally used sauna heaters are made thoroughly from stainless steel and their resistors are made from super strong AISI 309 stainless steel. All IKI heaters are built in Finland, hand-made from stainless steel and other high-quality materials that meet the most demanding standards. This guarantees durability.
Dimensions
Tech data
Heater
| 13.8 kW | 18 kW | 20.7 kW | 27 kW | 36 kW | ||
|---|---|---|---|---|---|---|
| Sauna Room | 15 - 25 m³ | 18 - 28 m³ | 22 - 32 m³ | 25 - 38 m³ | 35 - 50 m³ |
| Stone Capacity | 170 kg | 170 kg | 230 kg | 230 kg | 290 kg |
| Weight | 31 kg | 31 kg | 35 kg | 35 kg | 42 kg |
| Finished Weight | 201 kg | 201 kg | 265 kg | 265 kg | 332 kg |
| Height | 950 mm | 950 mm | 950 mm | 950 mm | 950 mm |
| Diameter | 450 mm | 550 mm | 550 mm | 550 mm | 650 mm |
Power
| 13.8 kW | 18 kW | 20.7 kW | 27 kW | 36 kW | |
|---|---|---|---|---|---|
| Supply Voltage | 3/N ~ 400V | 3/N ~ 400V | 3/N ~ 400V | 3/N ~ 400V | 3/N ~ 400V |
| Fuse | 20A | 32A | 40A | 50A | 63A |
Safety Distances
| 13.8 kW | 18 kW | 20.7 kW | 27 kW | 36 kW | |
|---|---|---|---|---|---|
| A | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
| B | 1000 mm | 1100 mm | 1100 mm | 1100 mm | 1100 mm |
Useful Resources
Pillar Pro - 13.8 kW / UKU WIFI Glass / With Stones (per capacity)
$0.00
SAUNA CALCULATOR
Use our sauna calculator to help you find which heater best suits your sauna space.
Customer service
Not sure which sauna suits your home? Call our expert team on 1800 439 737 for personalised guidance and support.
Warranty
All of our sauna products come with a warranty. Visit our warranty page for specific information.
Shipping
Experience dependable, fast, and hassle-free shipping you can trust, with a process that makes deliveries simple.
Secure payment
Experience safe, secure, and convenient payment , ensuring a smooth, worry-free checkout process for every purchase.
FAQs
Have a question ? We are here to help.
Can I install a sauna in a small space or apartment?
Certainly! We have a number of heaters that are perfect for smaller sauna rooms like the
Core and Drop heaters from Huum, or the Routa heater from Tulikivi.
Probably the most important thing to consider when choosing a heater where space is a premium is the heater’s safety distance, or how far it needs to be kept from
the wall.
In order to maximise the space you have for people in a smaller sauna you may wish to install a heat deflector on your heater to which halves the safety distance required on that side of the heater.
How do I choose the right size heater?
The size of the heater should be chosen based on the sauna room size and insulation. Choosing the right size is important. If the heater is too small, it will heat the sauna too slowly, it won’t provide enough steam, and it might burn out quicker. It is better to opt for a slightly too powerful heater with a thermostat. You need 1 kW of power to heat 1 m³ of the sauna room as a rule of thumb. The second important thing to consider is how the sauna room is insulated. If there are any uninsulated brick, tile, glass or log walls in the sauna room. An additional 1.5 m³ for each m² of such wall should be added to the sauna room size calculation. You can use our sauna calculator to find out the volume of your sauna room. If in doubt, please contact our friendly team, and we will help you find the perfect heater for your sauna!
What is the lifespan of the equipment?
With proper care, a good-quality sauna can last you 10–20 years, easy. Heaters and electrical components might need replacing
sooner depending on use, but overall they’re built to go the distance.
When will I receive my item?
When we have received your order, you will automatically receive an e-mail confirming your order. Orders made before MIDDAY (AEST) that are in stock will be picked, packed and shipped the same day. Delivery time is usually 2-4 working days to metro areas on the East Coast with TNT/Fedex, usually a day or two more for other capitals and rural areas.
Can I change or return my item?
Please see our Returns Policy linked at the bottom of the page, but long story short is yes you can! Our main conditions are that your purchase is unused and in its original package - from there if you contact us within 14 days of your delivery we can help you with a refund or guide you to a sauna package that mey be more to your spec.
